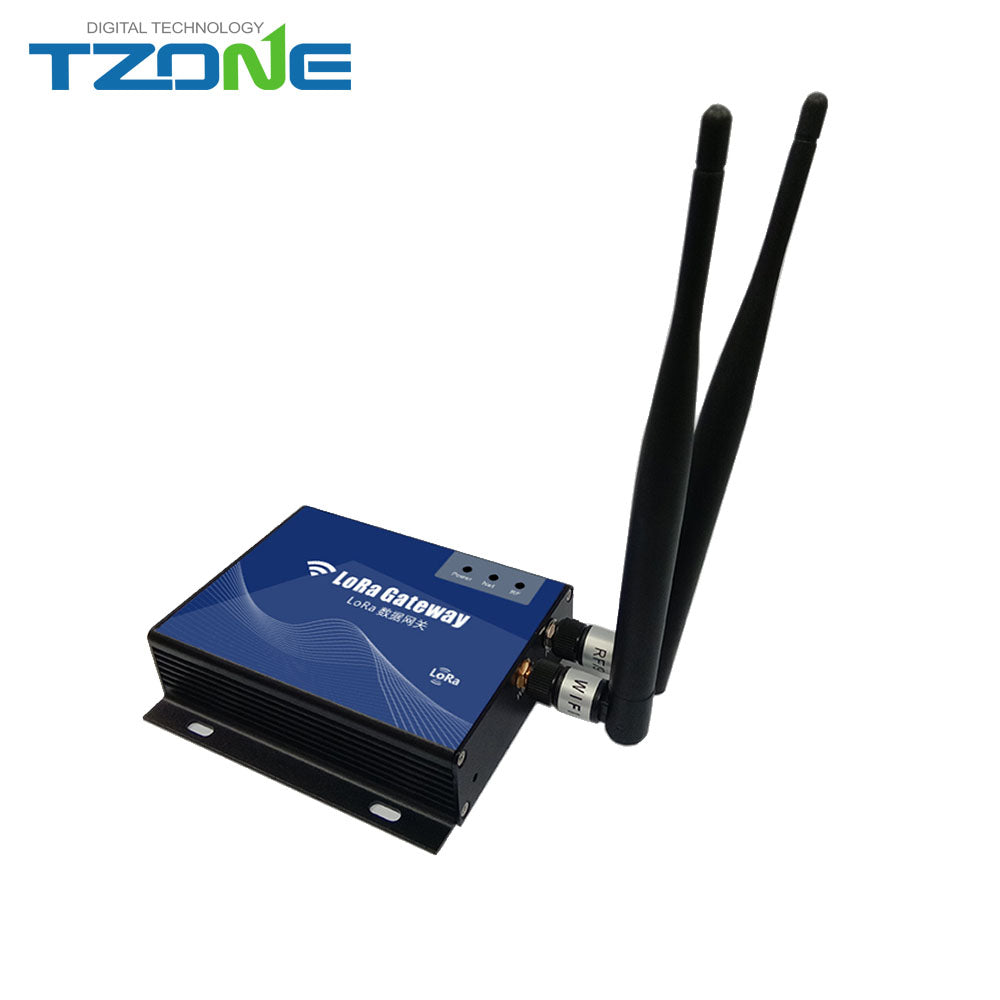

Tzone Digital LoRaWAN WiFi Gateway (Model RD07-WIFI)

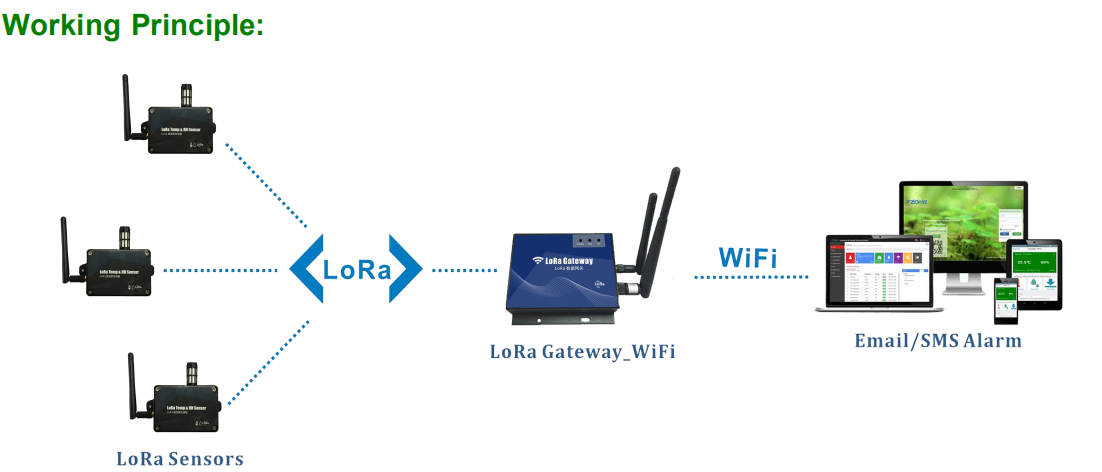

The Tzone Digital RD07-WIFI is a highly reliable communication gateway designed to form the backbone of a robust Internet of Things (IoT) monitoring network. It leverages LoRaWAN technology to provide ultra-long-range, low-power data acquisition from wireless sensors, connecting them seamlessly to your cloud platform via a standard Wi-Fi or LAN connection.

Key Features

• LoRaWAN Central Hub: Dedicated to receiving data from Tzone's LoRa temperature and humidity sensors (supporting up to 100 sensor tags simultaneously)

• Ultra-Long Range: LoRa technology provides a maximum communication distance of up to 5 kilometers (in open areas), making it ideal for large warehouses, farms, factories, and extensive monitoring sites

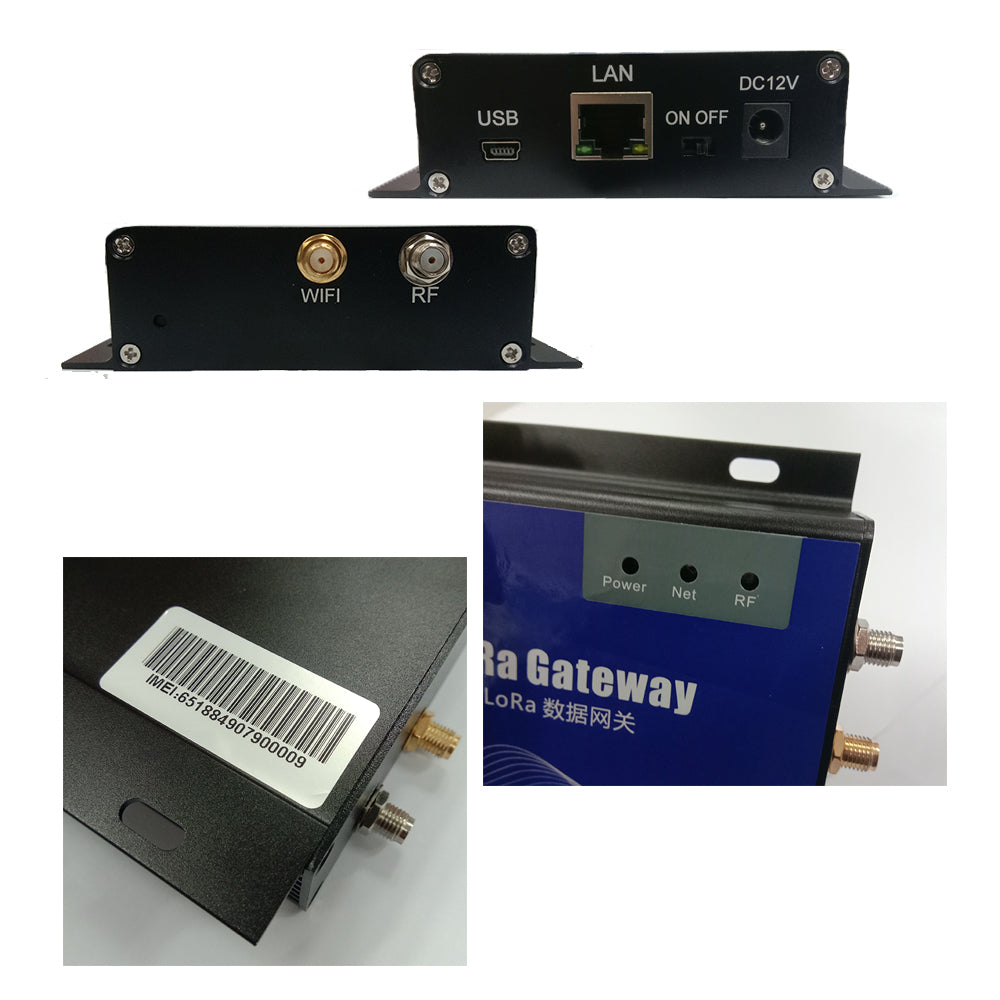

• Dual Network Connectivity: Supports both Wi-Fi and LAN (Ethernet) transmission modes, offering flexible and reliable data upload options to the TZONE Cloud Platform
• Data Reliability: Includes a backup battery for emergency use, ensuring the gateway remains operational and continues to collect data even during a power outage
• Alarm Integration: Provides comprehensive alarm methods, including temperature/humidity alarm notifications and a low battery level notification for connected sensors
• Easy Configuration: Features a simple USB configuration interface for quick setup and deployment

• Industrial Design: Encased in a durable metal shell, the gateway is designed for industrial use, supporting reliable operation in demanding environments.

• Global Frequency Support: Available with multiple RF frequency options (433/470/868/915MHz) to comply with local regulations worldwide

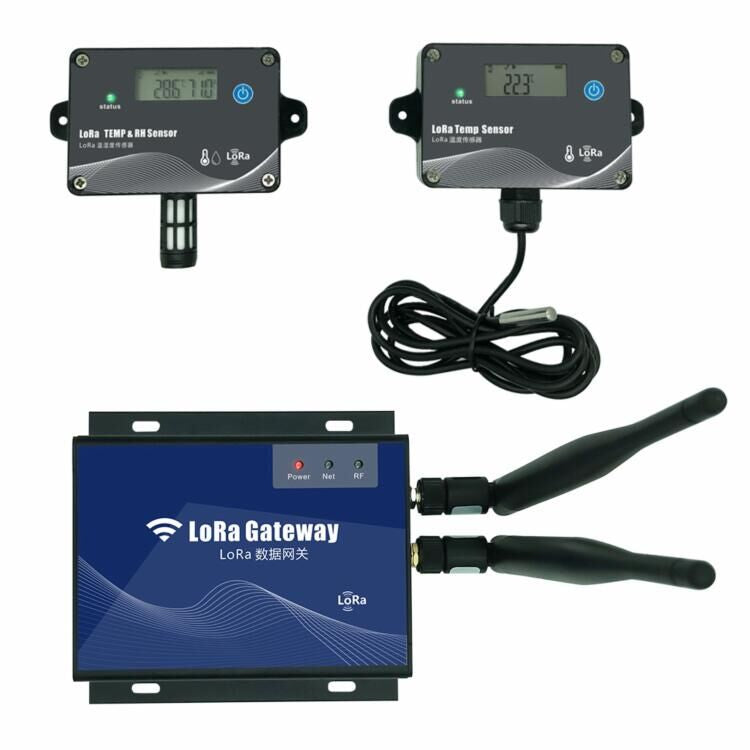

Use for LoRa temperature monitoring solution (ONLY work with LoRa Sensor)

Features:

1. Radio Frequency: 433MHz (470MHz/868MHz/915MHz optional)

2. Max 100pcs sensor management

3. Transmission Mode: WiFi/LAN

Device Information

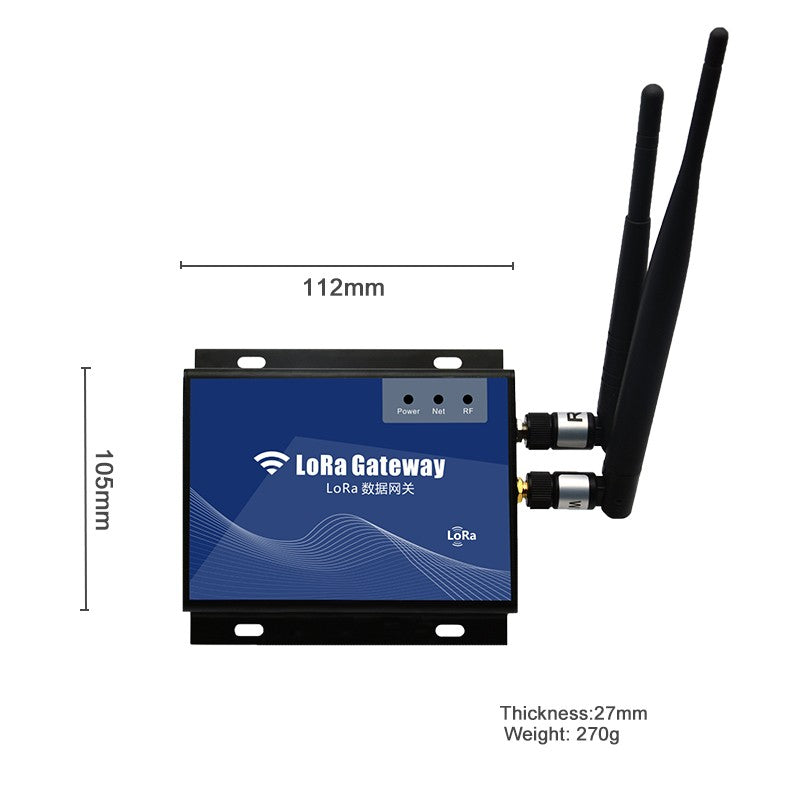

Dimension: 112*105*27mmNet weight: 0.27kg

Box Information(1pc)

Dimension: 27*17*8cmWeight: 0.73kg

CartonInformation(10pcs)

Dimension: 36*30*41cmWeight: 9kg

CartonInformation(20pcs)

Dimension: 55*36*41cmWeight: 16.5kg
