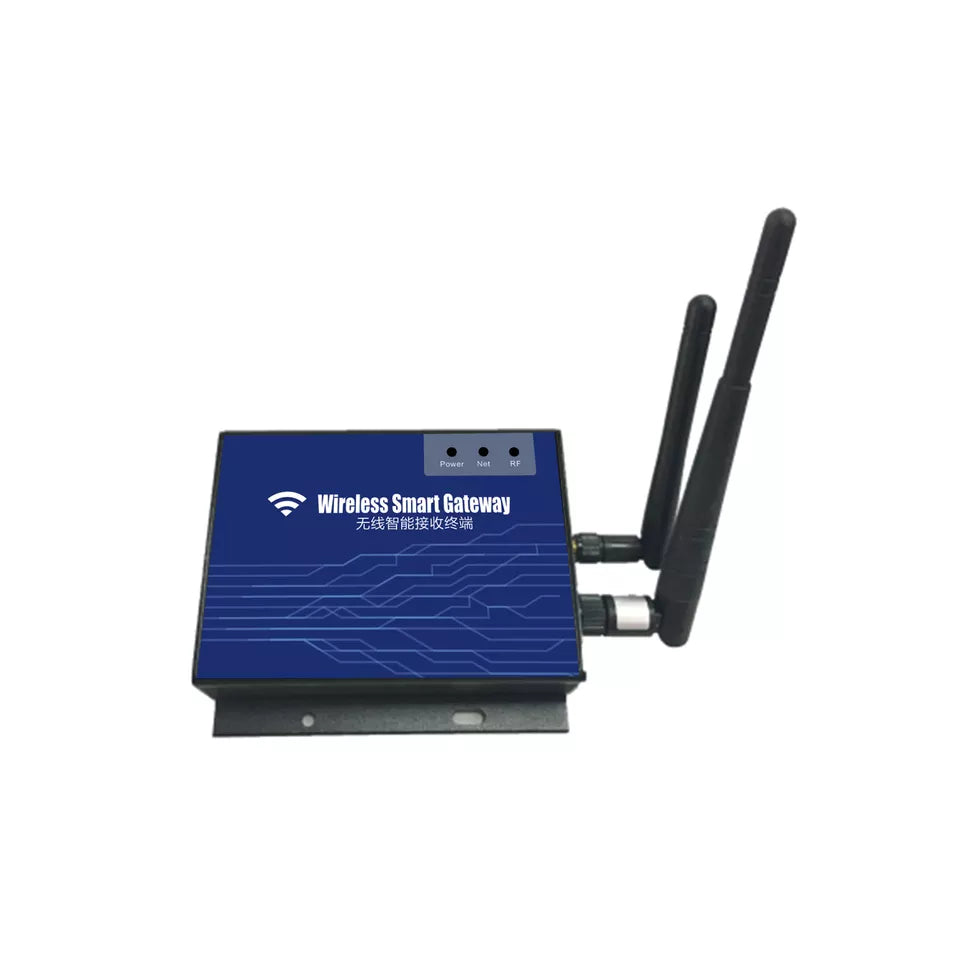

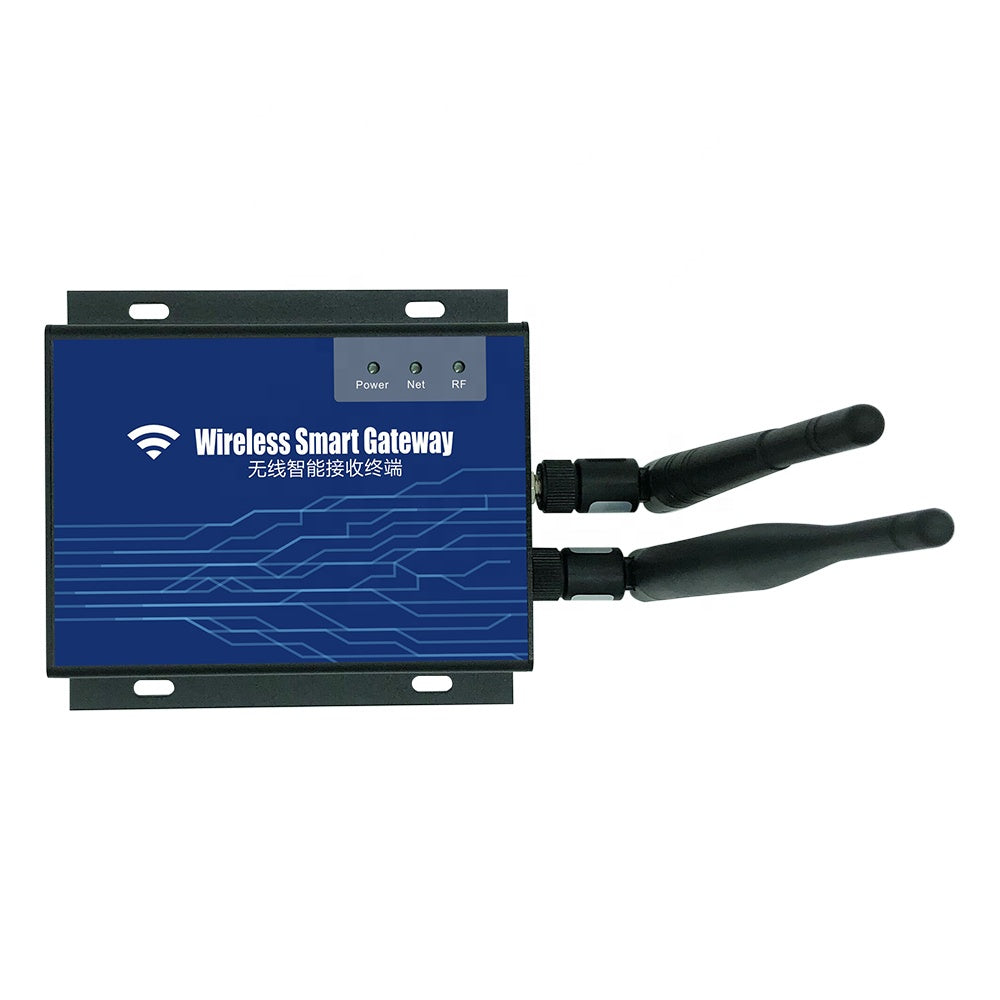

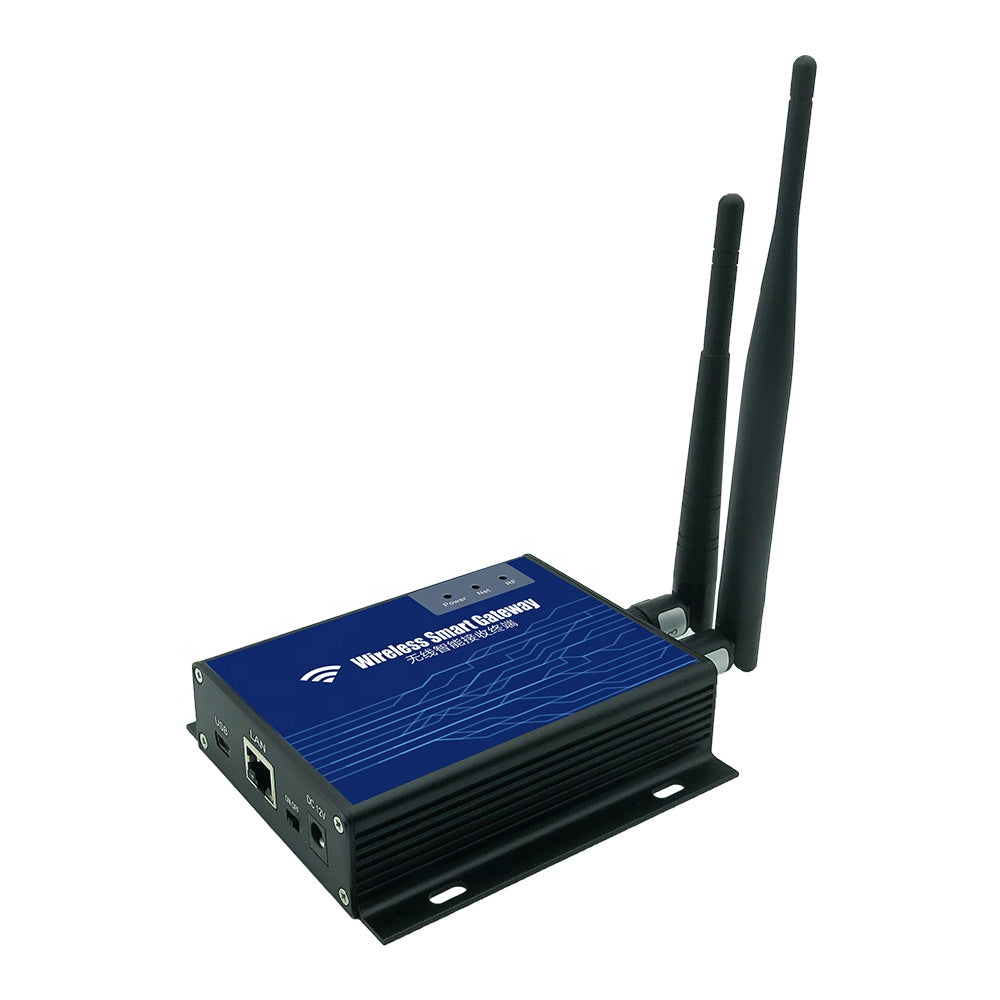

Tzone Digital RF WiFi Gateway (Model RD06-WIFI)

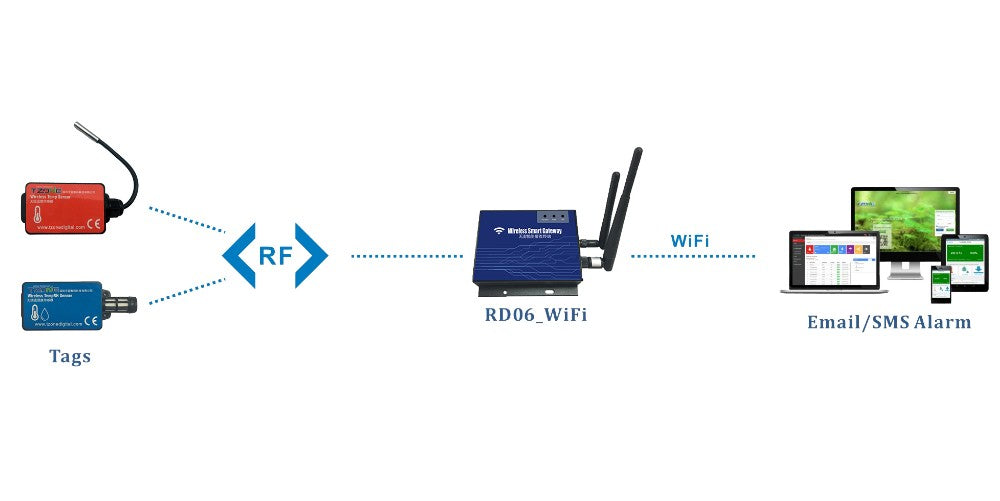

The Tzone Digital RD06-WIFI is a highly efficient and cost-effective wireless gateway designed for localized, real-time temperature and humidity monitoring systems. It acts as the central receiver for Tzone's RF (Radio Frequency) GFSK wireless sensor tags, reliably collecting data and transmitting it to the cloud via standard network connections.

Key Features

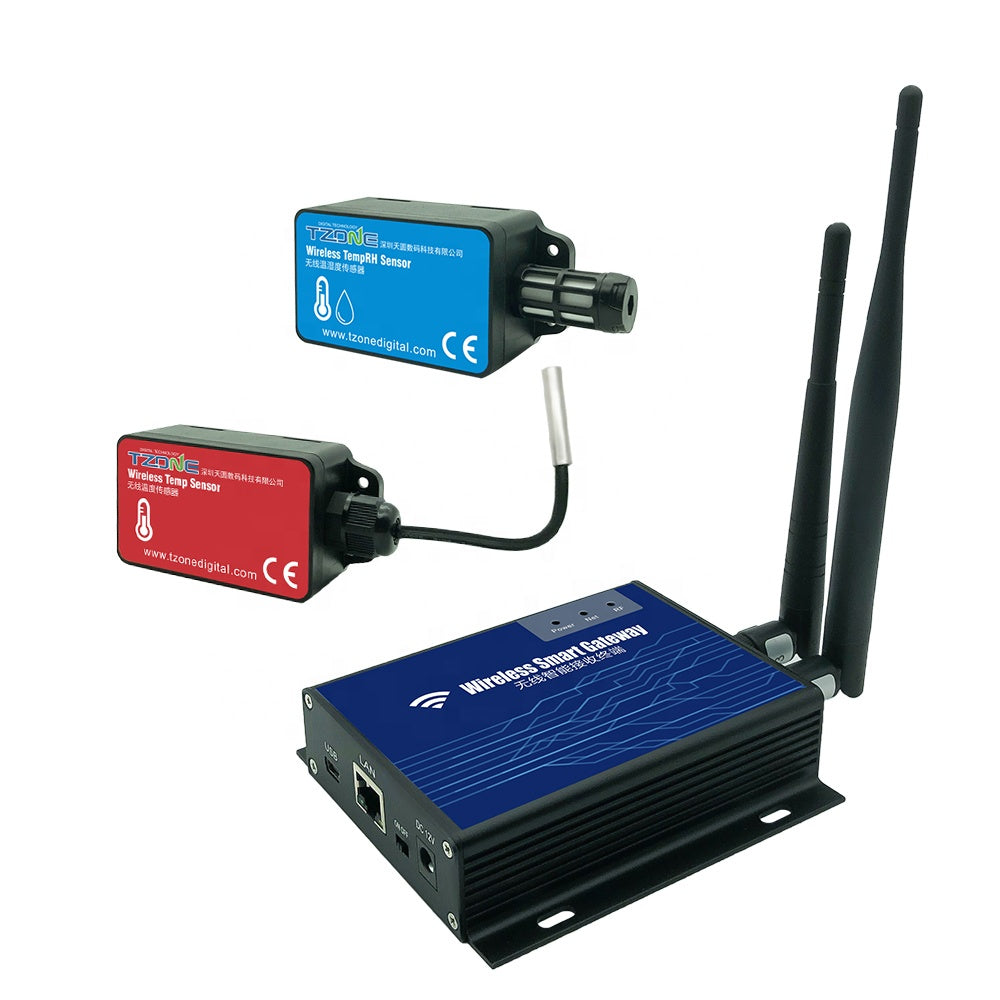

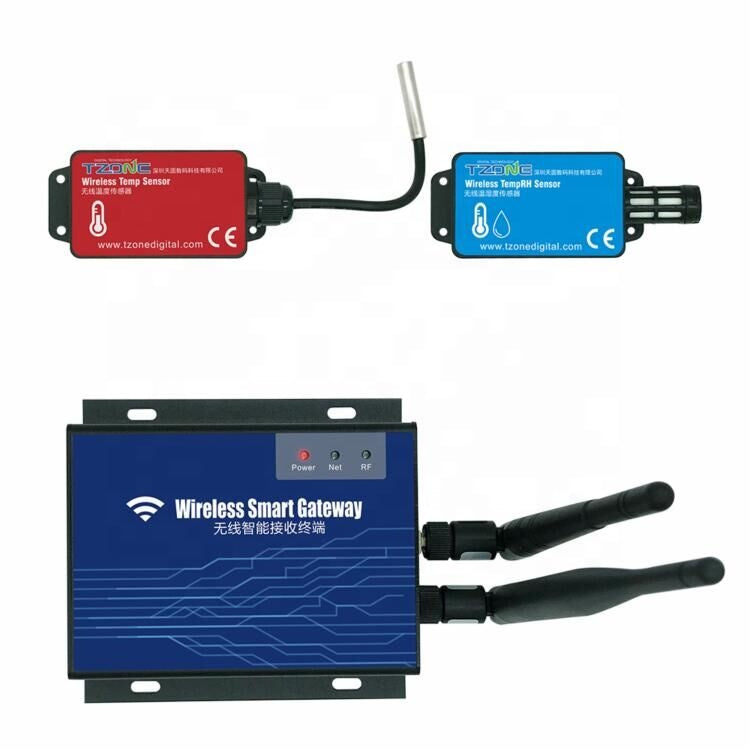

• RF Wireless Central Hub: Dedicated to receiving and consolidating data from Tzone's GFSK wireless sensor tags (e.g., Tag06/Tag06B), capable of managing up to 100 sensors simultaneously.

• Medium-Range Coverage: Utilizes GFSK modulation to achieve a wireless communication range of up to 300 meters in open areas, making it ideal for large indoor spaces like warehouses, cold rooms, production floors, and laboratories.

• Dual Internet Connectivity: Supports reliable data backhaul to the TZONE Cloud Platform via both Wi-Fi and LAN (Ethernet) interfaces, ensuring flexible deployment options within any facility with network access.

• Data Security & Backup: Features a built-in memory capacity to store up to 10,000 measurements offline. In case of a temporary internet connection loss, data is stored locally and automatically uploaded once connectivity is restored.

• Emergency Power: Equipped with a rechargeable 3.7V/850mAh backup battery, providing continuous operation and data integrity during brief power outages.

• Alarm Notifications: Supports temperature and humidity alarm notifications, as well as low battery level alerts for the connected sensors, ensuring timely awareness of critical events.

• Ease of Management: Offers simple USB configuration and status indication via LED lights, facilitating quick setup and ongoing maintenance.

• Industrial Design: Robustly built for an operating temperature range of -20c to +60 c
