TR130 4G GPRS iridium Satellite dual mode M2M & Iridium

TR130 4G GPRS iridium Satellite dual mode M2M & Iridium

TR130 4G GPRS iridium Satellite dual mode M2M & Iridium

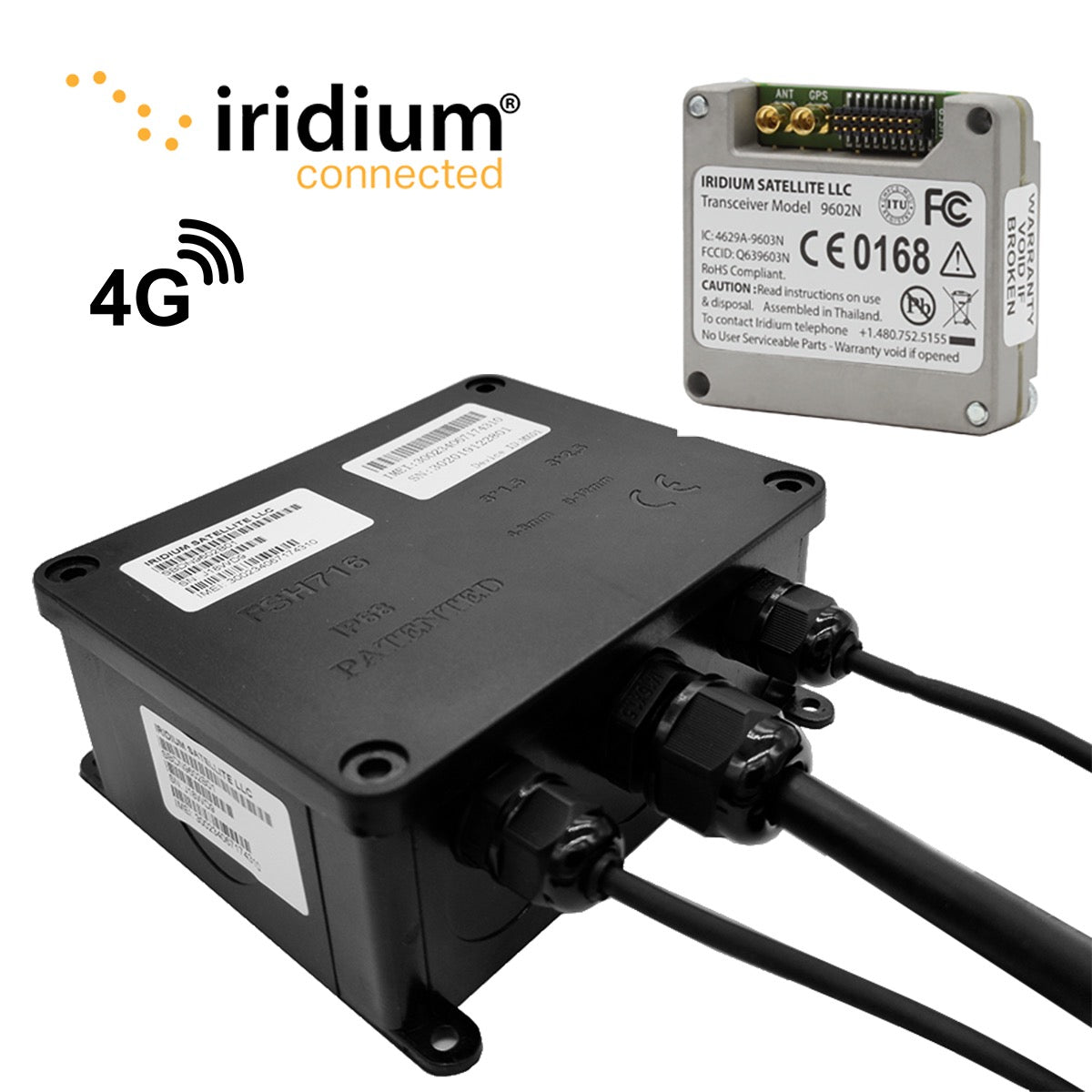

TR130 4G GPRS iridium Satellite dual mode M2M service SBD modem 9602  gps tracker for vessel tracking system



 Specifications

SPECIFICATIONS
Item Specifications
GSM frequency band GSM 850/900/1800/1900 MHz
WCDMA frequency band WCDMA 850/900/1900/2100 MHz
Satellite Transmit/Receive Frequency 1616-1625.5MHz
GPS sensitivity  -159 dBm
Positioning accuracy Without aid:2.5M(Open Sky)
Dimension 108 mm x 74 mm x 25 mm
Weight 215g
Coordinate system WGS-84
Input voltage DC 11–36 V/1.5 A
Built-in battery 500 mAh/3.7 V
Normal power consumption 60 mAh
Operating temperature  -20 to 80℃
GSM antenna Internal antenna
GPS antenna  External antenna
Satellite antenna External antenna,SMA connector
Built-in memory chip 4 Mb
optional accessories Camera
Fuel Sensor
RFID Card reader
Trailer ID
OTA update Update through FTP
Port 1 positive Input
1 input for vehicle ACC
1 analoge input
1 output for fuel cut (ARM)
1 Setup port
1 RS485 bus

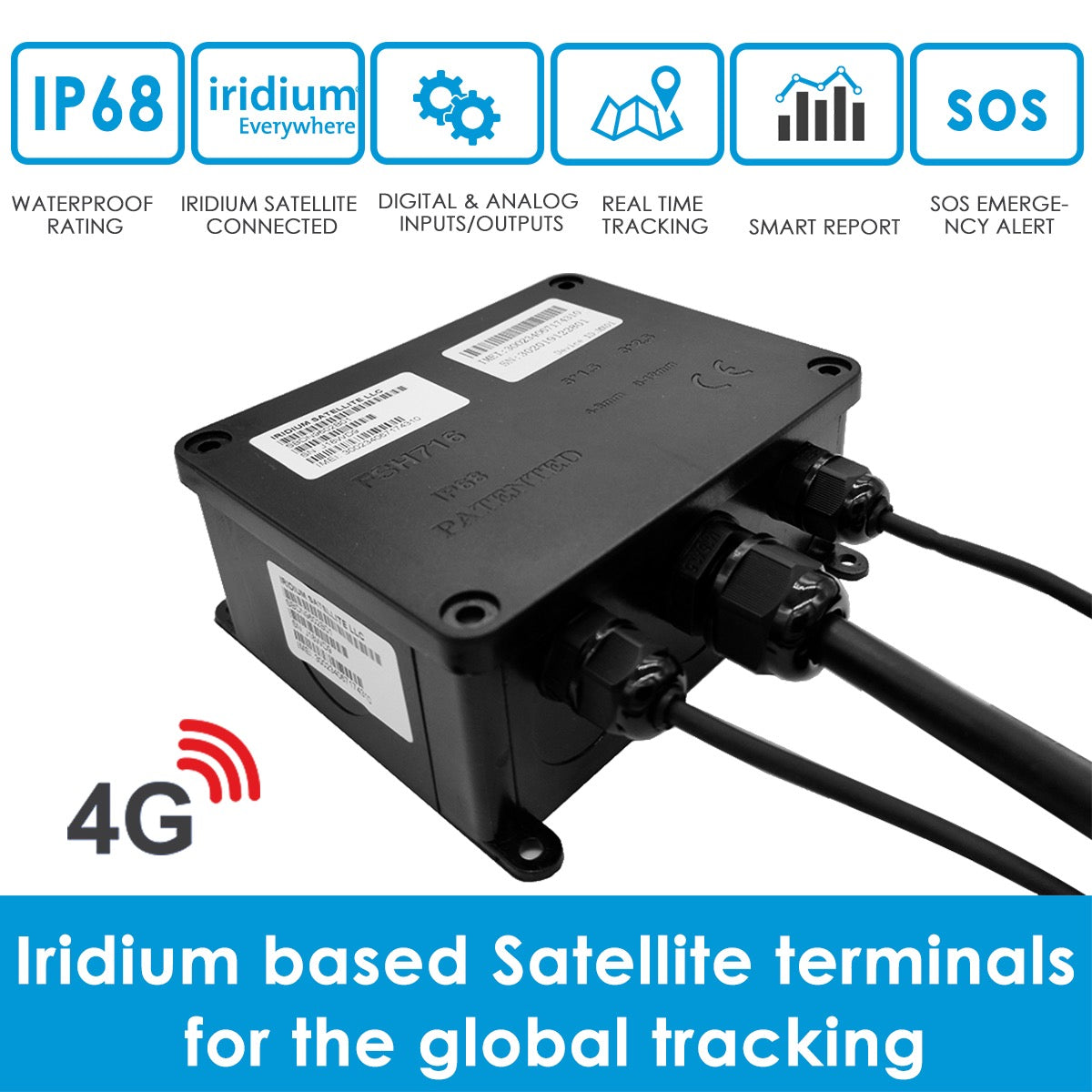

Features



  1. Dual mode communications: Iridium SBD module and GPRS module

  2. switch communication mode, GPRS is priority mode. It switches to SBD mode wherever there is no GPRS signal.

  3. No blind area: Signals cover all global areas including remote areas, sea, air, mountain, desert and the polar regions

  4. SOS

  5. Geo-fence

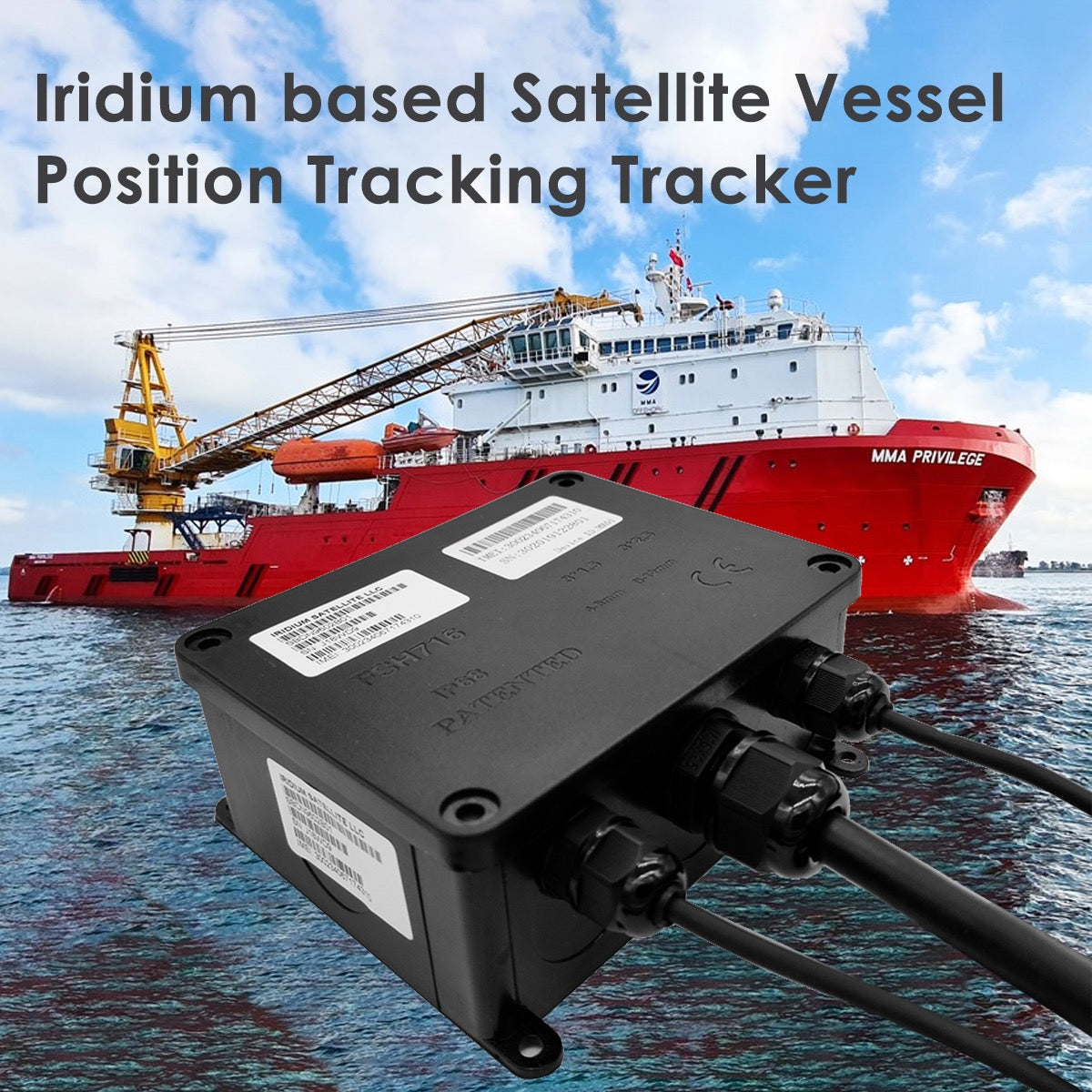

  6. Application: maritime vessels, equipment monitoring, automatic vehicle location





Application

- Vessel/Boat/Yatch

- Oil company

- Mining Site

- Airplane

- Desert

- Polar area

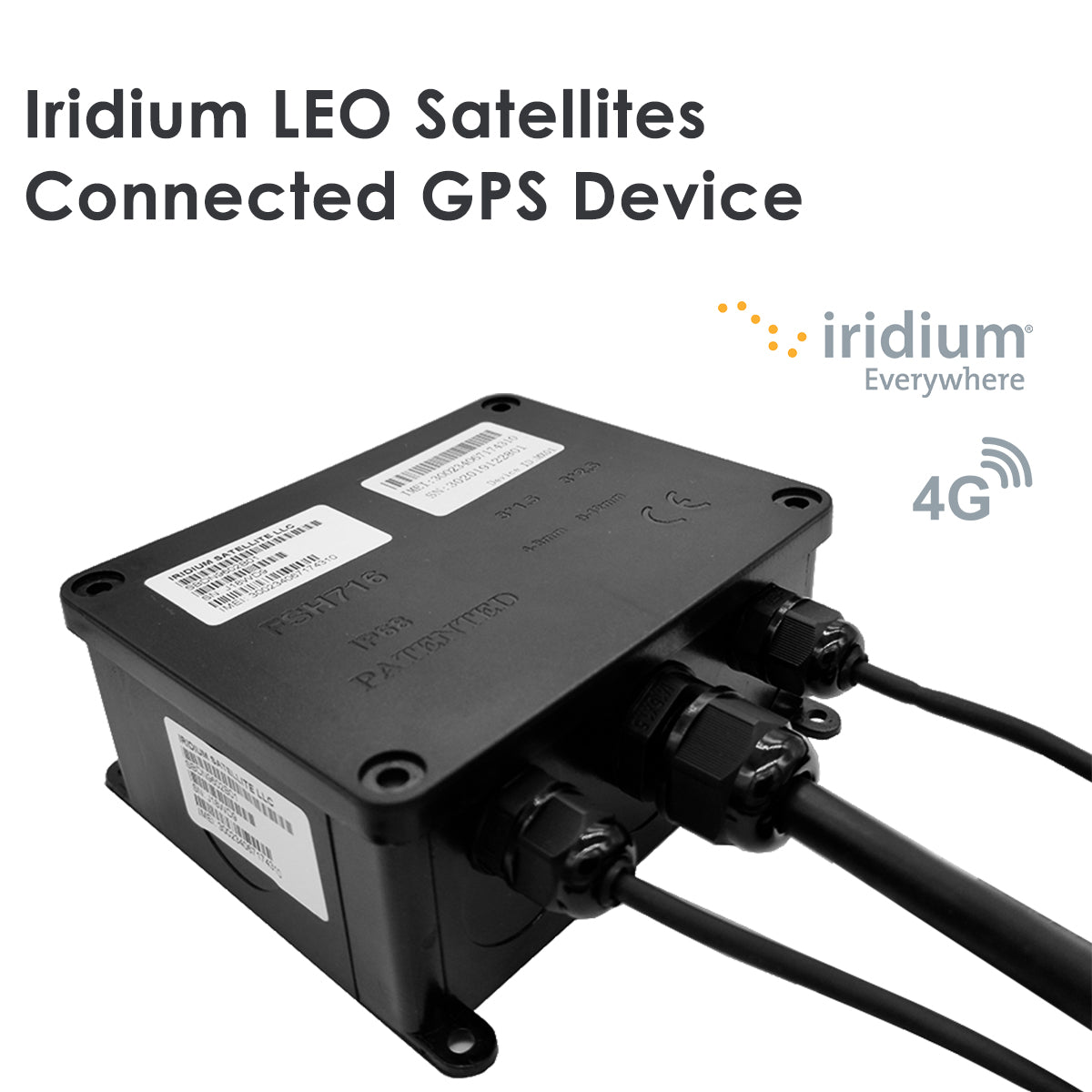

Product Picture




vehicle satellite positioning systemvehicle satellite positioning system
