Description

DESCRIPTION

FMB120 small and professional tracker with internal high gain GSM and GNSS antennas, which is able to collect device coordinates and other useful data and transfer them via GSM network to server. This device is perfectly suitable for applications where location acquirement of remote objects is needed: fleet management, car rental companies, taxi companies, public transport, logistics companies, personal cars and so on. FMB120 can perform tasks on remote objects, such as monitoring engine status, controlling truck’s door etc.

Features

    MODULE


Name

Teltonika TM2500

Technolgy

GSM/GPRS/GNSS/BLUETOOTH

       GNSS


GNSS

GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS

Receiver

33 channel

Tracking sensitivity

-165 dBM

Accuracy

< 2.5m CEP

Hot start

< 1 s

Warm start

< 25 s

Cold start

< 35 s

      CELLULAR


Technology

GSM

2G bands

Quad-band 850 / 900 / 1800 / 1900 MHz

Data transfer

GPRS Multi-Slot Class 12 (up to 240 kbps), GPRS Mobile Station Class B

Data support

SMS (text/data)

         POWER


Input voltage range

10 - 30 V DC with overvoltage protection

Back-up battery

170 mAh Li-Ion battery 3.7 V (0.63 Wh)

Power consumption

At 12V < 6 mA (Ultra Deep Sleep)

At 12V < 8 mA (Deep Sleep)

At 12V < 11 mA (Online Sleep)

At 12V < 20 mA (GPS Sleep)

At 12V < 35 mA (nominal)

          BLUETOOTH


Specification

4.0 + LE

Supported peripherals

Temperature and Humidity sensor, Headset, OBDII dongle, Inateck Barcode Scanner, Universal BLE sensors support

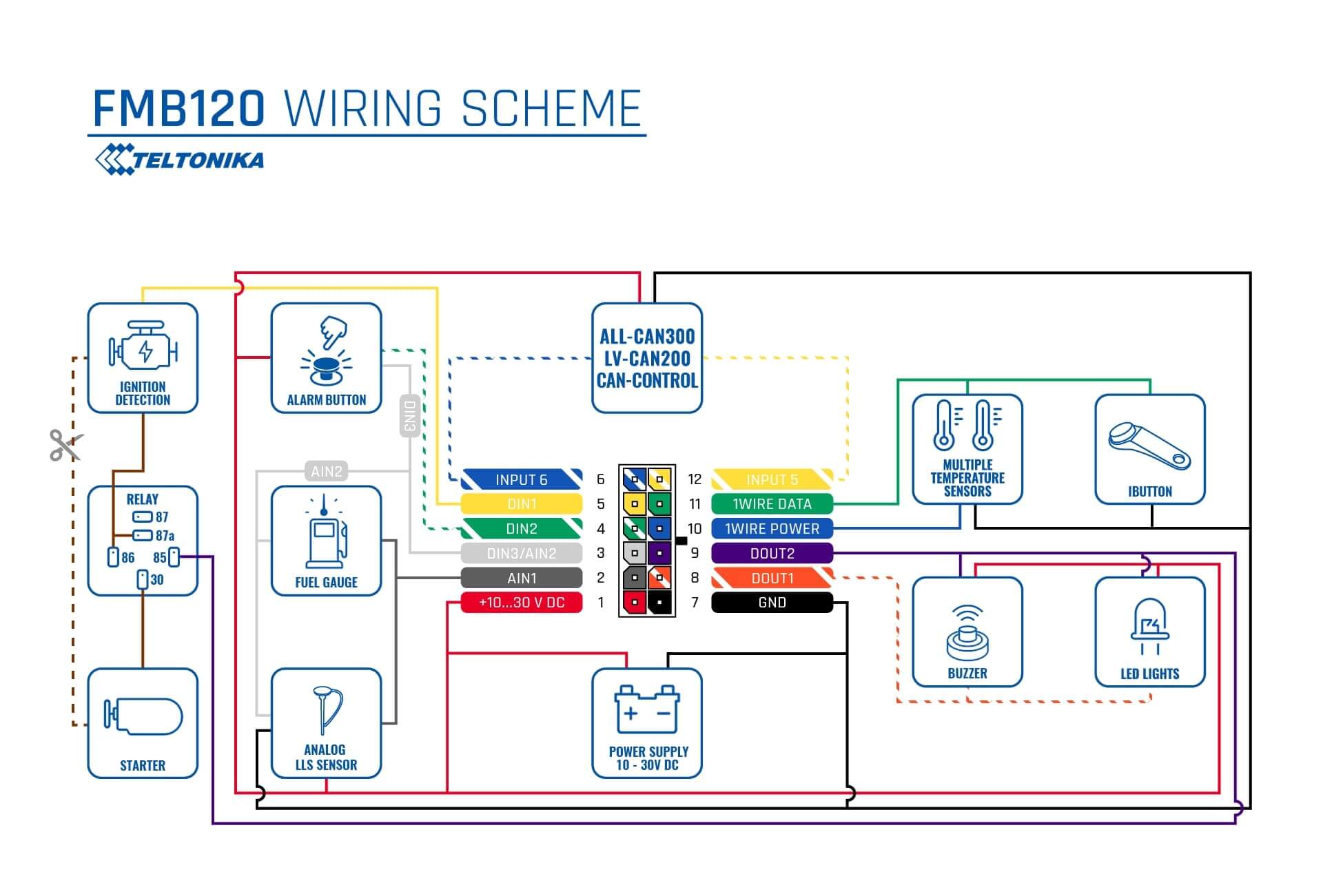

              INTERFACE


Digital Inputs

3

Digital Outputs

2

Analog Inputs

2

CAN Adapter inputs

1

1-Wire

1

GNSS antenna

Internal High Gain

Cellular antenna

Internal High Gain

USB

2.0 Micro-USB

LED indication

2 status LED lights

SIM

Micro-SIM + eSIM

Memory

128MB internal flash memor

       PHYSICAL SPECIFICATION


Dimensions

65 x 56,6 x 18,9 mm (L x W x H)

Weight

55 g

    OPERATING ENVIRONMENT


Operating temperature (without batt00ery)

-40 °C to +85 °C

Storage temperature (without battery)

-40 °C to +85 °C

Operating humidity

5% to 95% non-condensing

Ingress Protection Rating

IP41

Battery charge temperature

-0 °C to +45 °C

Battery discharge temperature

-20 °C to +60 °C

Battery storage temperature

-20 °C to +45 °C for 1 month

-20 °C to +35 °C for 6 months

Sensors

Accelerometer

Scenaris

Green Driving, Over Speeding detection, Jamming detection, GNSS Fuel Counter, DOUT Control Via Call, Excessive Idling detection, Immobilizer, iButton Read Notification, Unplug detection, Towing detection, Crash detection, Auto Geofence, Manual Geofence, Trip

Sleep modes

GPS Sleep, Online Deep Sleep, Deep Sleep, Ultra Deep Sleep

Configuration and firmware update

FOTA Web, FOTA, Teltonika Configurator (USB, Bluetooth), FMBT mobile application (Configuration)

SMS

Configuration, Events, DOUT control, Debug

GPRS commands

Configuration, DOUT control, Debug

Time Synchronization

GPS, NITZ, NTP

Fuel monitoring

LLS (Analog), LV-CAN200, ALL-CAN300, CAN-CONTROL, OBDII dongle

Ignition detection

Digital Input 1, Accelerometer, External Power Voltage, Engine RPM (CAN Adapters, OBDII dongle)


     CERTIFICATION & APPROVALS

Regulatory CE/RED, E-Mark, EAC, RoHS, REACH
