Description

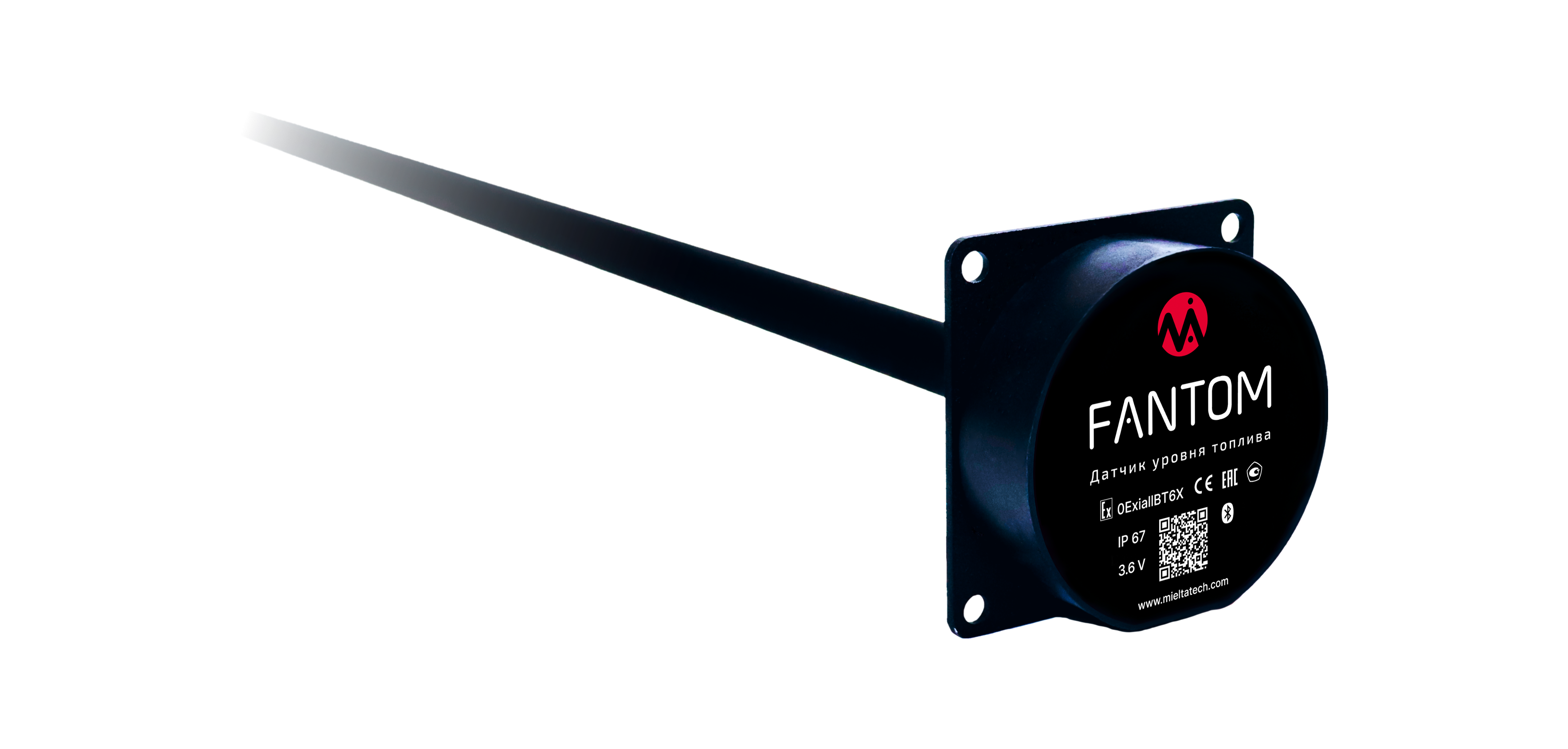

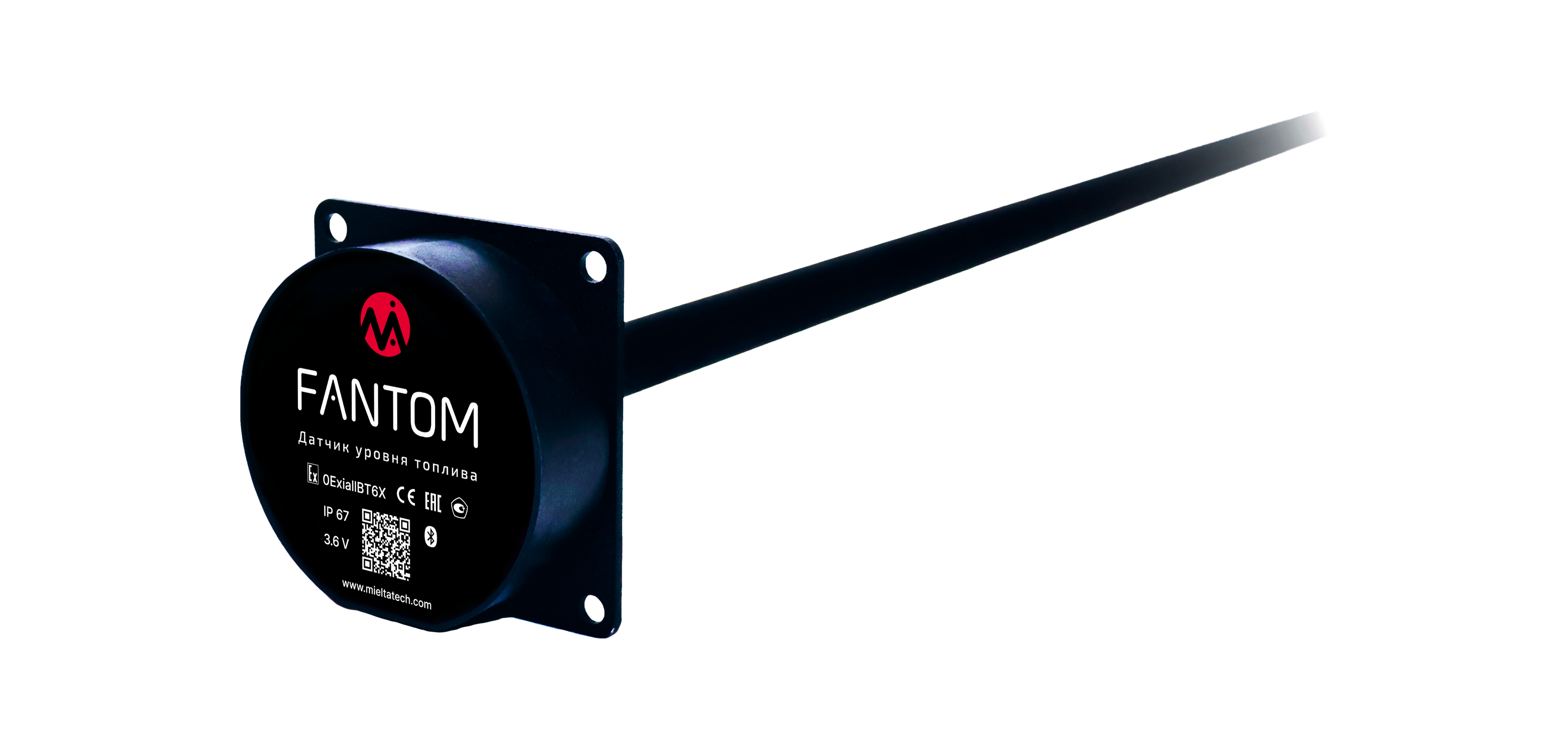

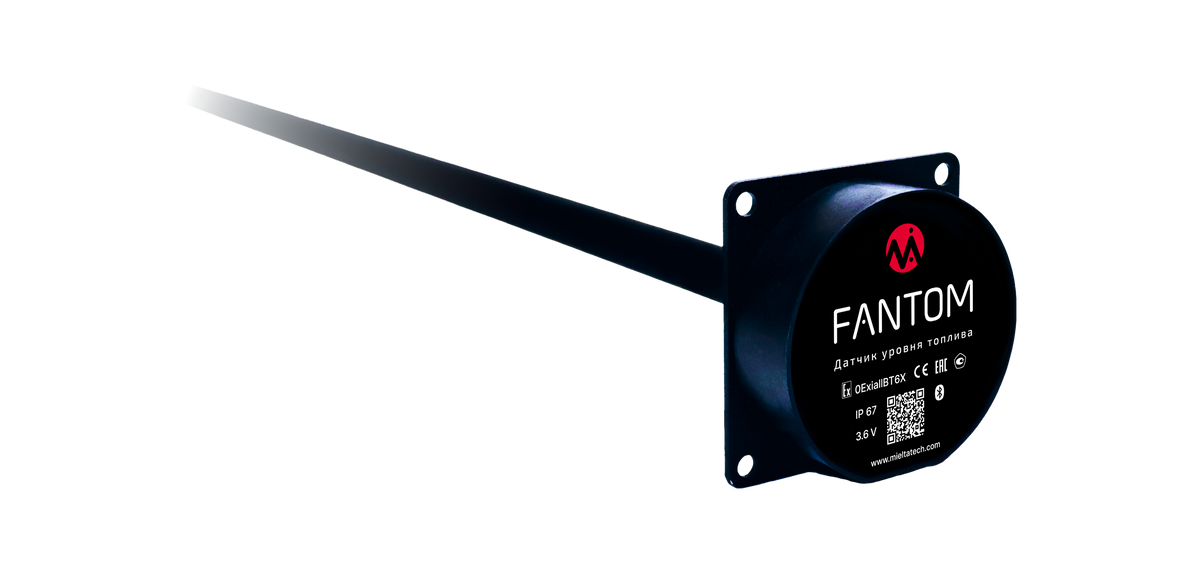

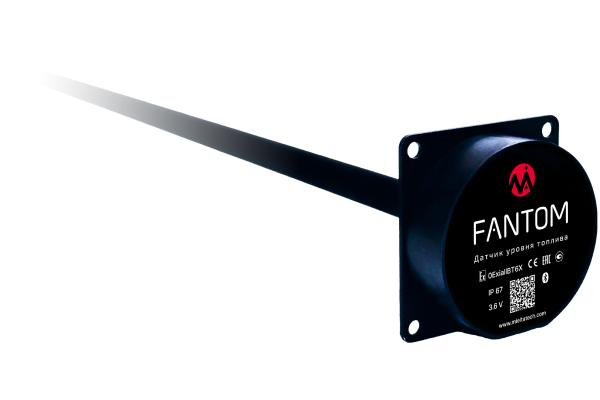

Mielta Fantom combines satellite monitoring trends that provide reliability and stability of operations even under difficult operating conditions: on uneven topography and in unstable communications.

The device is equipped with an innovative system of self-diagnostics: a unique integrated meter based on the obtained data is able to inform about the reasons of deviations in operation (incorrect calibration, change of fuel properties, water discharge).

The built-in accelerometer detects the vehicle inclination level, which can be used to validate the fuel level data.

The adaptive energy saving system allows the device to save energy consumption during storage and transportation in a horizontal position. Communication stability is achieved by means of a high-efficiency built-in antenna.

Technical characteristics

POWER SUPPLY

Battery Li-SOCL2 3.6 В, 2.7 А*ч

MEASUREMENT PERIOD

from 1 to 10 sec

ADVERTISING PERIOD

from 1 to 10 sec

AVERAGING INTERVAL

from 1 to 60

RELATIVE MEASUREMENT ERROR

No more than 1%

DATA TRANSFER FORMAT

0 – Mielta   1 – analog № 1

WIRELESS TRANSMITTER

Bluetooth Low Energy 5.0, 2.4 GHz

TRANSMITTER POWER

Adjustable, up to 8 dBm

TILT ANGLE MEASURER

Inbuilt accelerometer, +/- 1G α°=arcsin(Z/127)

TEMPERATURE MEASURER

inbuilt, +/-  2°С

INBUILT MEMORY

4 Мb

WIRELESS SOFTWARE UPDATE





YES

INGRESS PROTECTION

IP67

EXPLOSION PROTECTION

0ExiaIIBT6X

Operating temperature

От - 40 до +50 °C

Operating temperature maximum short-time*

*(no more 30 minutes once a day)

До +85 °C

LIFETIME

7  years

MEASUREMENT LENGTH

990 мм /1490мм /1990мм

HOUSING DIMENSIONS

80х80х25 мм

SENSOR DIMENSIONS

80х80х1015 мм

What is BLE? BLE technology is a one-way data transfer. The tracker monitors the air with a given frequency and receives sensor readings. A permanent connection with the tracker is not established. This allows the fuel level sensor to operate very economically on a single battery for several years. When uploading readings from the black box, a normal two-way bluetooth connection is established with the sensor. Thus, bringing fuel consumption devices to a new level.

- The wireless fuel level sensor uses Bluetooth Low Energy (BLE) technology. - Has a built-in battery: works without external power with low power consumption. - The absence of wires simplifies and speeds up the installation process. - Can be configured from a smartphone.



Installation of fuel sensors is no different from installation of other sensors. Before installation, the sensor requires “empty-full” adjustment, and after installation in the tank, calibration. The sensor is configured using the Mielta DM app, which is available on Google Play and the App Store.

Thanks to a special measurement method, the Mielta Fantom can operate with different types of fuel: gasoline, eco-gasoline, diesel fuel. A unique self-diagnosis system allows you to remotely find out the reason for receiving incorrect data: incorrect calibration, changes in fuel properties, water intrusion into the fuel. The sensor sends a notification in the form of a code that contains the type of error and the amount of deviation.

A sensitive shielding sensor is built into the sensor body, which determines the approach of metal objects to the body or its cover. The sensor fixes the date and time of the sensor cover and its duration. Data from the sensor is stored in memory and transmitted to the terminal using a special protocol.

The fuel level sensor has a built-in 4Mb flash-memory. Mielta Fantom stores a backup copy of the software and configuration. The “black box” function permanently records data, regardless of whether the sensor is connected to the terminal.

Thanks to the built-in accelerometer, the device recognizes the level of the vehicle's inclination, which can be used to determine the validity of the fuel level data.



The wireless fuel level sensor is an innovative solution for monitoring the filling and draining of fuel in a vehicle. Full control over the operation and health of the sensor in one application. Prevention of sabotage attempts by drivers. Fast and easy installation. All these problems are solved by one sensor - MIELTA FANTOM
