Jimi Iot LL303 4G LTE Solar Power Container GNSS Tracker

Jimi Iot LL303 4G LTE Solar Power Container GNSS Tracker

Jimi Iot LL303 4G LTE Solar Power Container GNSS Tracker

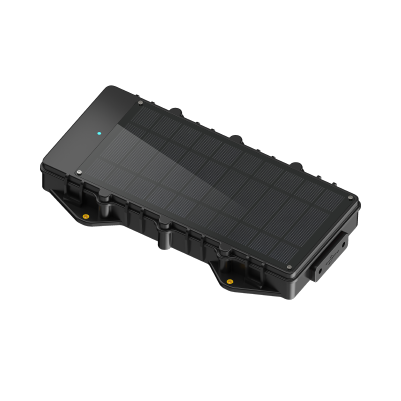

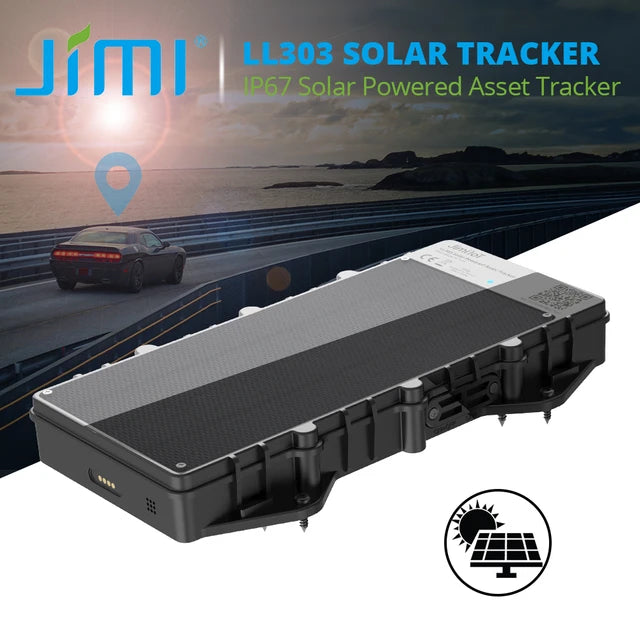

 The LL303 is a 4G solar-powered GPS tracker designed for the management of construction vehicles and vessels. Featuring the solar panel, magnetic charger, and IP67 waterproof rating, this device is ideal for a variety of deployments that require long standby time and continued optimal performance. LTE communication with GSM (2G) fallback ensures a solid connection in almost all cases. In addition to these features, multiple working modes, various peripheral accessories and the suite of event-triggered alerts will make the LL303 a valuable part of your fleet management strategy.

<head><meta charset="UTF-8" /></head>

LTE & GSM Network
Communication via 4G LTE networks with 2G GSM fallback.
GPS & WiFi & LBS Positioning、GPS & BDS & LBS & Wi-Fi Positioning、GPS & LBS Positioning
GPS & BDS & LBS Positioning
A synergy of multiple positioning systems ensures that locations are accurately displayed on the cloud platform.
Solar & Magnetic Charging、Solar Powered
Solar & Magnetic Charging
Easy charging via the solar panel and magnetic charger.
IP67 Dust & Water Resistance
IP67 Dust & Water Resistance
Rugged design ensures continued optimal performance, even in the toughest conditions.
Multiple Alerts
Multiple Alerts
Instant alerts for atypical events such as device removal, abnormal vibration, abnormal temperature & humidity, etc.
Multiple Working Modes
Multiple Working Modes
Configurable working modes according to your actual demands.
Bluetooth Configuration、Bluetooth Accessory Compatibility (Optional)
Bluetooth Accessory Compatibility (Optional)
Various bluetooth peripheral accessories allow for monitoring of fuel consumption, door status, etc.
RFID Reader (Optional)
RFID Reader (Optional)
Access the information of devices via the active RFID.

<head><meta charset="UTF-8" /></head>
GNSS
Positioning system GPS+BDS+LBS
Positioning accuracy <2.5m CEP
Tracking sensitivity -165dBm
Acquisition sensitivity -148dBm
TTFF (open sky) Avg. hot start ≤1sec
Avg. cold start ≤32sec
Cellular
Communication network LTE Cat 1/GSM; LTE Cat M1/Cat NB2
Frequency LL303-L
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B20/B28
LTE-TDD: B40
GSM: B2/B3/B5/B8LL303-E
LTE-FDD: B1/B3/B5//B7/B8/B20/B28
LTE-TDD: B38/B40/B41
GSM: B2/B3/B5/B8



LL303-A
Cat M1: B2/B4/B5/B12/B13/B25/B26/B66
Cat NB2: B2/B4/B5/B12/B13/B25/B66
GSM: B2/B3/B5/B8

Power

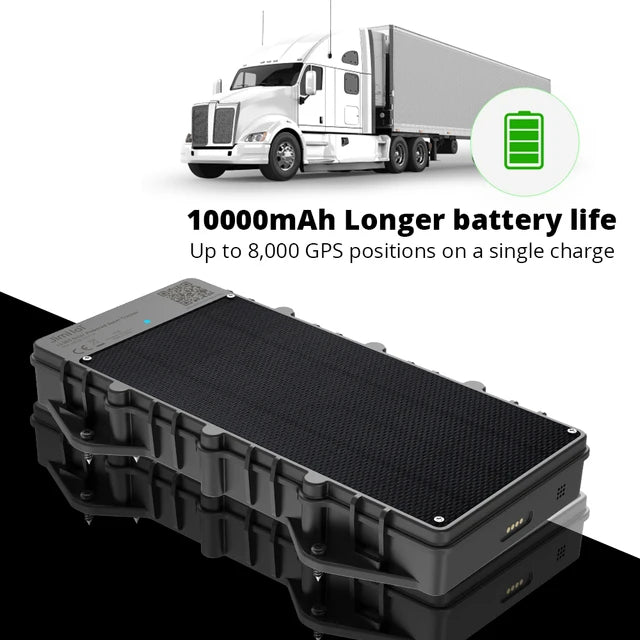

Battery 10,000mAh/3.7V industrial-grade Li-Polymer battery
Solar power 5V/400mA (Standard Operating Voltage/Current @STC)
STC: Direct illumination with 38,000lux halogen lamp on the test bench.
Magnetic charger 5V/2A
Working modes Mode 1: Timing mode
Mode 2: Intelligent mode
Mode 3: Power-saving mode
Standby time Up to 1 year in power-saving mode
Interface
LED indication Cellular (Green), Power (Red)
SIM Nano-SIM
Tamper proof Hall effect sensor
Physical specification
Dimensions 200x115x25mm
Weight 423g
Operating environment
Operating temperature –20℃ to +70℃
Operating humidity 5%~95%, non-condensing
IP rating IP67
Feature
Sensors Accelerometer, Hall effect sensor
Scenarios Low battery alert, Tamper alert, Vibrating Alert
Bluetooth BLE 5.0
RFID 2.4GHz

* We reserve the right to the final interpretation of this page. All information is for reference only and is subject to change without further notice.
