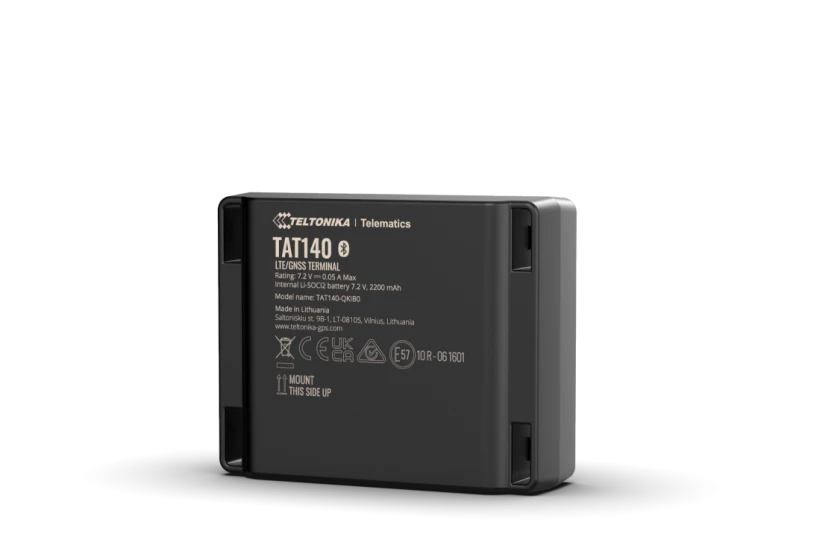

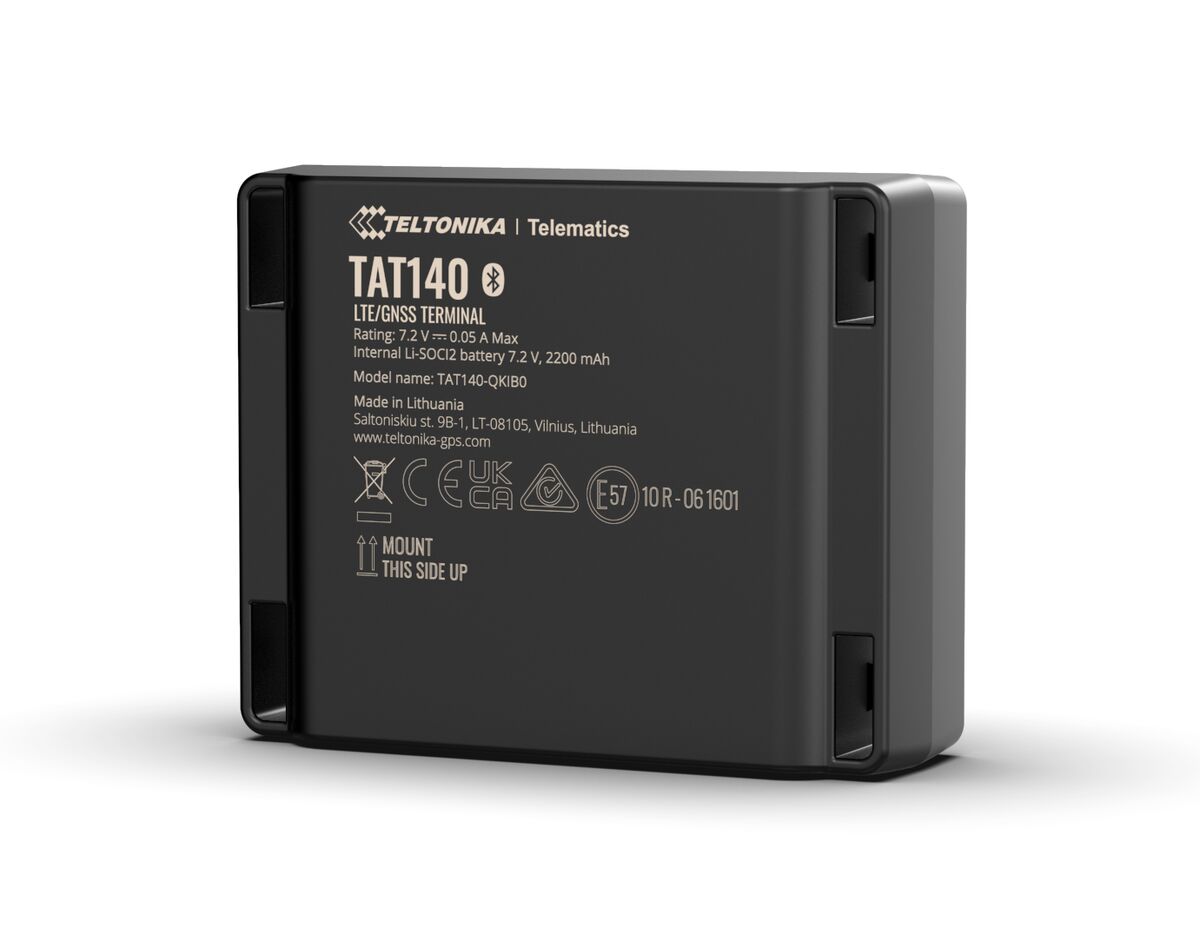

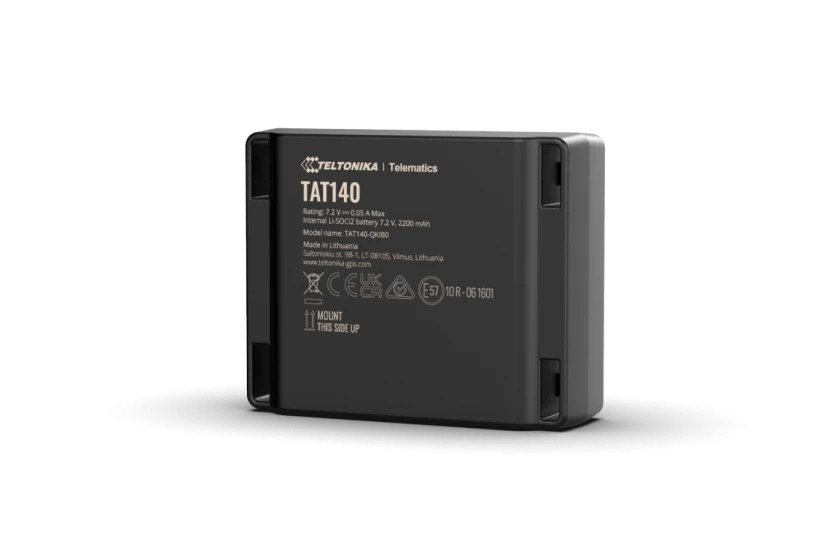

TAT140 Teltonika 4G LTE Asset Tracker

A GPS tracker is a device used to determine the positioning or the direction of travel of the object. You can use it in real time to easily determine the exact location of a moving or stationary object.

After inserting a Sim card in the GPS tracker, it is managed and programmed by sending it SMS messages from a telephone. The device coordinates are sent to the user via SMS messages. It is also possible to monitor the movement of the object in real time through a server. The user can review and analyze the information he colelcted regarding the movement of the object. The server ensures the accessibility of the information regarding the positioning of the object and its travel path in real time. Its location appears in “Google maps”. You can review the information via the manufacturer’s application at your mobile phone or a computer. By purchasing a GPS tracker in our shop, you wil lbe able to use the server without any time limitations.

EFFICIENT CAR THEFT PREVENTION

• Ideal to be used as a backup tracker – easy to hide anywhere in a vehicle thanks to a compact size, while sleep mode protects against detecting tracker by thieves.
• UP TO 3 YEARS BATTERY LIFE TIME*
• Sending records once a day with 4G LTE Cat 1 connectivity, offline modes and battery saving scenarios for various asset tracking.

* Battery life may be affected by various factors, such as signal strength, etc.

PERIODIC/SCHEDULED REPORTS

• Define your own data sending scenarios by the type of the asset you are tracking or a dedicated use case.

Properties

• LTE Cat 1/GSM/GPRS/GNSS/BLUETOOTH;
• GPS, GLONASS, GALILEO, BEIDOU;
• Receiver 33 channel;
• Tracking sensitivity -165 dBM;
• Position Accuracy < 2.5 m CEP;
• Technology LTE Cat 1, GSM;
• 2G bands;
• TAT140-QJIBO: EG915U-EU GSM: B2/B3/B5/B8;
• TAT140-QKIB0: EG915U-LA GSM: B2/B3/B5/B8;
• 4G LTE Cat 1 bands;
• TAT140-QJIBO: EG915U-EU LTE-FDD: B1/B3/B5/B7/B8/B20/B28;
• TAT140-QKIB0: EG915U-LA LTE-FDD: B2/B3/B4/B5/B7/B8/B28/B66;

Data transfer

• LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL);
• GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL);

Data transfer

• LTE: LTE FDD : Max 10Mbps (DL)/Max 5Mbps (UL);
• GSM: GPRS: Max 85.6Kbps (DL)/Max 85.6Kbps (UL);

Data support

• SMS (text/data);

Power

• Extremely low self-discharge Li-SOCl2 swappable, non-rechargeable battery, 7,2V 2200mAh;
• Bluetooth;
• Specification 4.2 + LE;
• Supported peripherals;
• EYE sensors, Beacons, Universal BLE sensor support;
• Dimensions 78*63*28 mm;
• Weight 115 g.;
• Interface GNSS antenna;
• Internal High Gain Cellular antenna;
• Internal GSM High Gain;
• 2.0 Micro-USB;
• LED indication 1 status LED light;
• Micro-SIM;
• 128MB internal flash memory;
• Operating temperature (without battery);
• -20 °C to +60 °C;
• Battery discharge temperature -60 °C to +85 °C ;
• Battery storage temperature;
• Recommended max 30°C;
• Ingress Protection Rating;
• IP68;

Scenarios

• Accelerometer wake up, GNSS, Bluetooth® sensor support, Recovery mode, Periodic tracking on stop / on move, Scheduler with time zones, Backup tracking, Static navigation, Lost BLE sensor;
• Accelerometer
• Sleep modes;
• Single custom sleep mode;
• Configuration and firmware update;
• FOTA Web, Teltonika Configurator (USB);
• Configuration, Events, Debug;
• GPRS commands;
• Configuration, Debug;
• Time Synchronization GNSS, NITZ, NTP;
