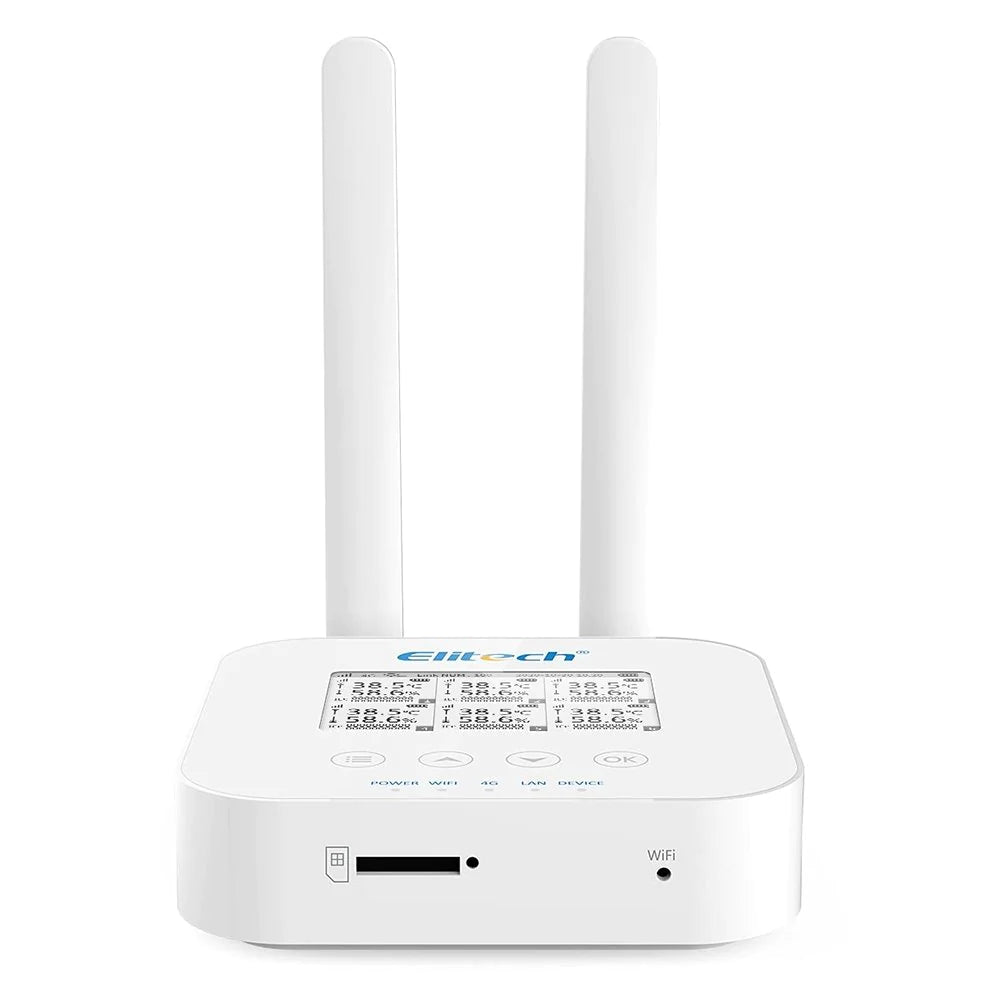

Elitetech LoRa Gateway RCW-3000 Support 4G, Wifi, Ethernet ideal for SFDA Solution in big warehouses

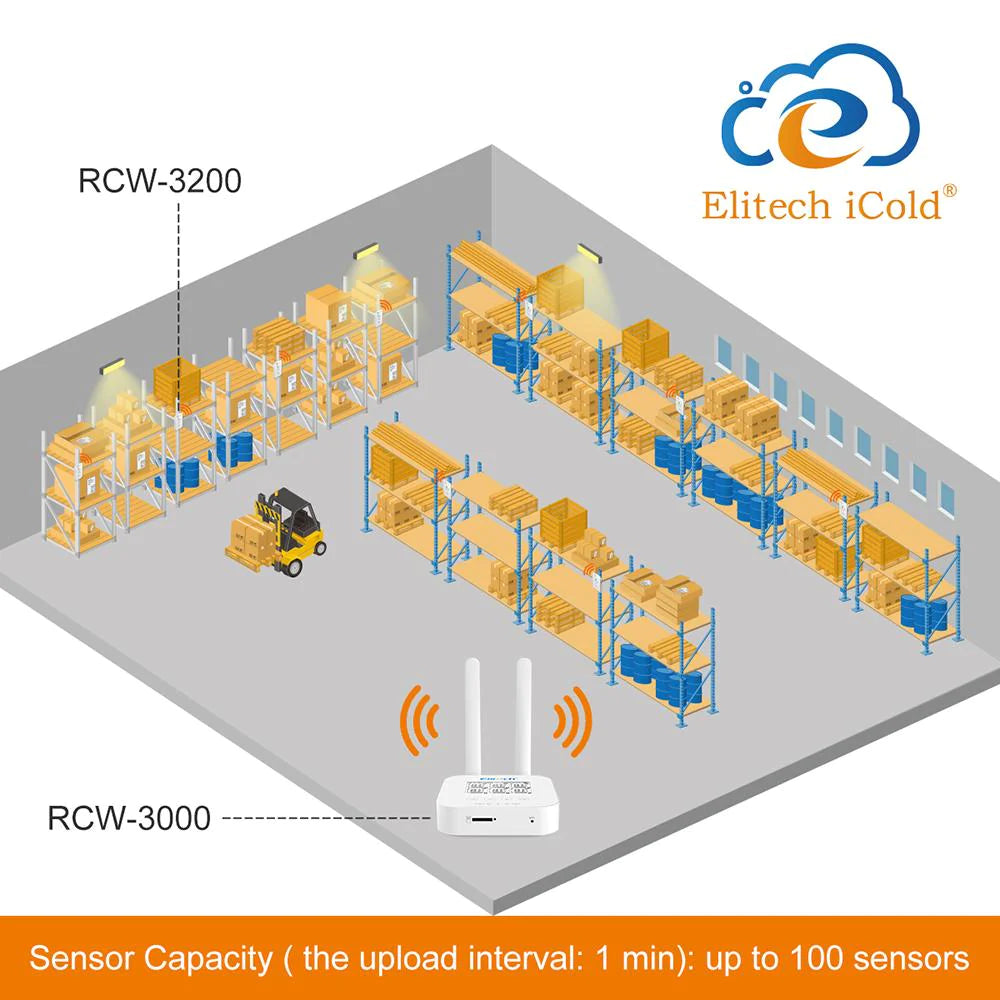

The RCW-3000 split network monitoring system adopts LoRa, 4G, Wifi, Ethernet and other communication transmission technologies. It is composed of wireless data collectors, gateways, cloud platforms, mobile APPs, etc. The wireless data collector can be deployed arbitrarily according to the monitoring location. The gateway is capable to upload data through 4GWifi Ethernet and other methods of communication. With the cloud platform and APP, it can realize remote data viewing, historical data query, remote alarm push notification and other functions. RCW-3000 split network monitoring system is widely used in large-scale cold storage, shade storage, hospitals, fresh supermarkets, etc. RCW-3000 gateway is supporting use with RCW-3200 sensors. Either of them cannot be used alone.

Feature

• [WIRELESS] Avoid punch wiring, easy installation. Wireless communication, meeting data transmission of 1000 meters within the visible distance.
• [LONG STANDBY TIME] Large-capacity lithium battery, able to last for more than 12 months (10 minutes or 3 minutes upload interval).
• [MULTI-COMMUNICATION] 4G and WiFi connection can be freely switchable to meet the communication requirements of different environments.

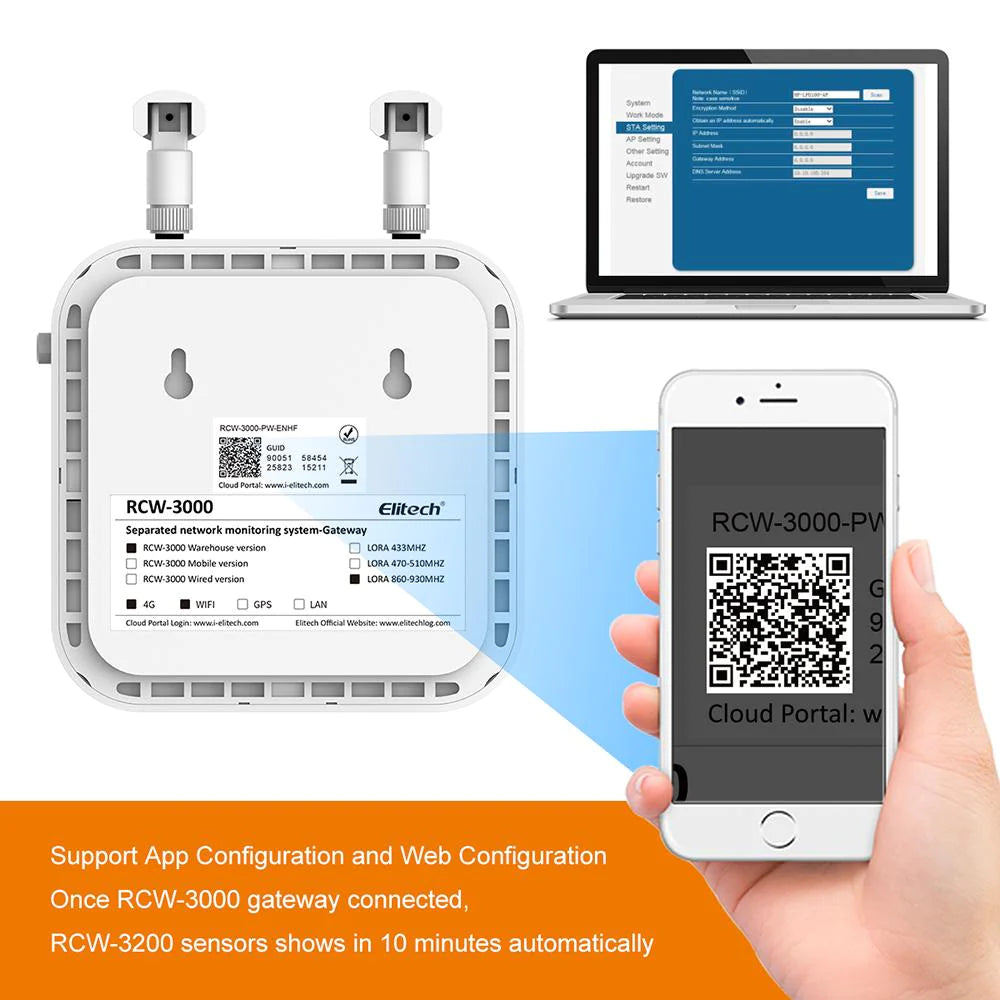

• [EMAIL/SMS/APP ALARM AVAILABLE] Elitech App allows remote parameter settings and device management (support iOS and Android).
• [FREE SUBSCRIPTION] Standard plan (free) provides email alert, remote setting, and 30 days data review and storage; Advanced and professional plan available, which provide 3~5 years data storage, data export, user management, and FDA service.
• 1-year warranty.

Gateway RCW-3000 Technical Specifications

• Data Upload Interval: 1min~24hr adjustable, 1min by default
• Wireless Connection Interval: 1min~24hr adjustable, 1min by default
• Max Transmission Distance: ≥1,000m
• Gateway Access Number: ≤100 sensors
• Storage Capacity: 1 million

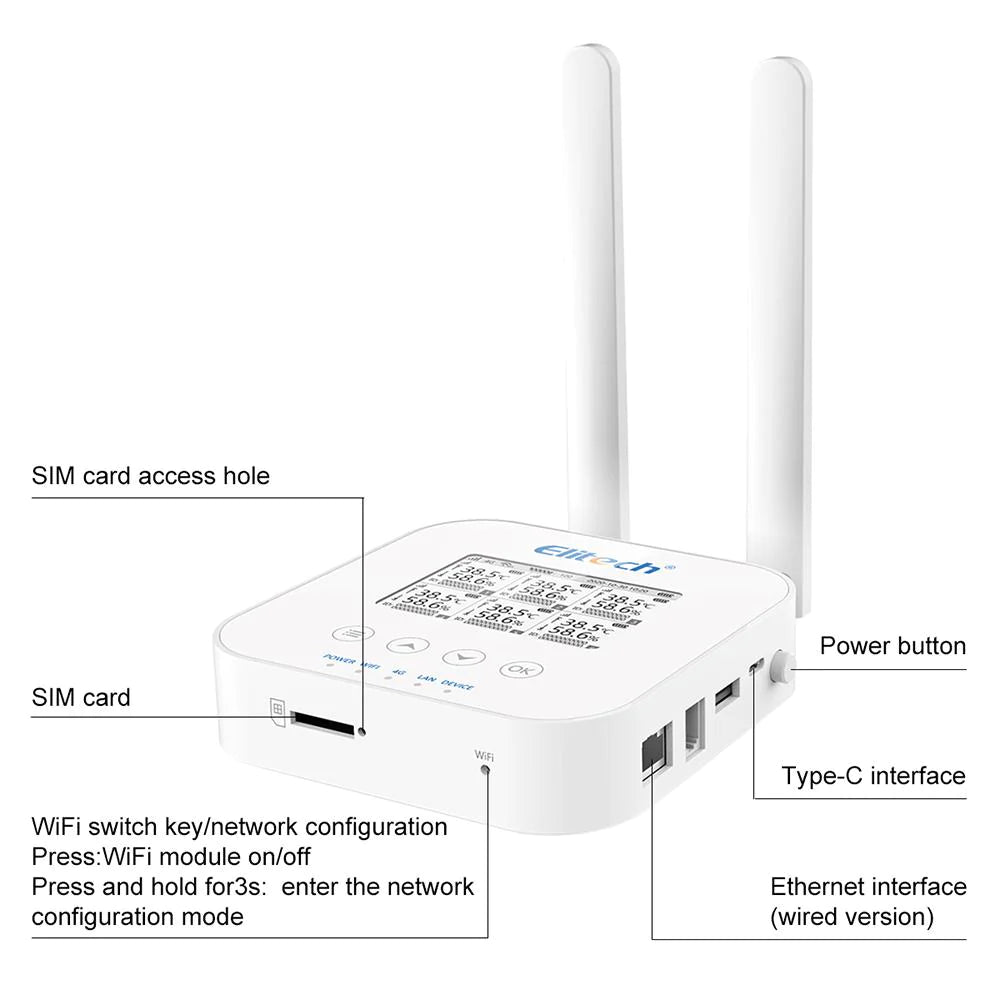

• Charging/Data Export: USB Type-C
• Battery Life: 48 hours at 25℃, upload interval 5 min, 20 sensors access; 24 hours at -10℃, upload interval 5 min, 20 sensors access
• Power: 5V/2A DC
• Battery Capacity: 5000mAh rechargeable lithium battery
• Dimension: 130*130*35 mm

Product details:

• 100% brand new from factory and high quality
• Economical Price
• Sold and shipped from Singapore (hence faster delivery, Easy to Exchange)
• 1 Year Warranty
• Brand: Elitech
• Models: RCW-3000 & RCW-3200
• Color: White

  Specifications (RCW-3000)
• Data Upload Interval: 1 Min-24Hr Adjustable, 1Min By Default
• Wireless Connection Interval: 1min-24hr adjustable, 1min by default
• Max Transmission Distance: =1,000m
• Gateway Access Number: =100 sensors
• Storage Capacity: 1 million
• Charging/Data Export: USB Type-C
• Battery Life: 48 hours at 25, upload interval 5 min, 20 sensors access; 24 hours at -10, upload interval 5 min, 20 sensors access
• Power: 5V/2A DC
• Battery Capacity: 5000mAh rechargeable lithium battery
• Dimension: 130 x 130 x 35 mm
• Wireless Sensor RCW-3200

  Specifications (RCW-3200)
• Temperature Measuring Range: -20-50 Degree C (Internal), -40-85 Degree C (External)
• Humidity Measuring Range: 0-99 Percent RH
• Log Interval: 1min-24hr adjustable, 5min by default
• Alarm Log Interval: 1 min-24Hr Adjustable, 2min by default
• Storage Capacity: 32,000
• Charging/Data Export: Micro USB
• Working Frequency: 470-510 MHz ISM Frequency Band
• Battery Capacity: 3200mAh rechargeable lithium battery
• Power: 5V/1A
• Protection Grade: IP65
• Dimension: 110X 70 X 18mm
