AI Based 4CH 4G LTE MDVR, built-in GPS,WiFi Hotspot, ADAS , DMS, RS232, Support upto 2TB Storage

AI Based 4CH 4G LTE MDVR, built-in GPS,WiFi Hotspot, ADAS , DMS, RS232, Support upto 2TB Storage

AI Based 4CH 4G LTE MDVR, built-in GPS,WiFi Hotspot, ADAS , DMS, RS232, Support upto 2TB Storage

1.Product Features

Real-time location monitoring: Periodically reports location information such as longitude, latitude, and speed based on the preset return interval.

Support 8 channels maximum of 1080P video real-time storage and upload.
Support 1pc SD card and 1pc 2.5 inch hard disk for storage.
Support remote intercom initiated by the monitoring platform.
Real-time video playback and historical video playback at the monitoring platform. Support two RS232 serial port

Support ADAS and DMS AI safety driving assistance functions.
ADAS: give voice warning for dangerous driving behaviors such as lane departure,

close proximity and collision, and upload it to the platform for evidence collection

DMS: can effectively warn drivers of dangerous driving behaviors, such as fatigue, smoking, phone call, distraction, etc. by voice warning and uploading to the platform for evidence collection



2. Product Parameters

technical items

technical indicators

operating system

operating system

Linux

hardware solution

microprocessor

4- core A7

cache

8GB

Memory

1GB

video

AHD720P / 1080P

8 channels 720P (1280*720) or 1 080P (1 920*1080 )

output

1 channel VGA

audio

enter

7- channel audio (PCM format), AV3-AV8 , pickup

output

2-way audio (PCM format), speaker and AI reminder speaker

show

screen display

8- way screen display

video

Audio and video compression format

Audio g711A, video H.264

Image Resolution

720P (1280*720) or 1 080P (1 920*1080 )

real time video

8 way

time-lapse video

After the ACC is turned off, the default


300-second delay video,
Delay parameters can be set in the range : 1 0-65535s

play back

playback channel

Local 8-channel synchronous playback, monitoring end single-channel playback

network

2G/3G/4G

LTE FDD: B1/3/5/8 LTE TDD: B34/38/39/40/41 WCDMA: B1/5/8 GSM: 900/1800MHz

storage

hard disk

1 hard drive, the capacity can be expanded up to 2 TB

SD

Single SD card, maximum support 256 GB

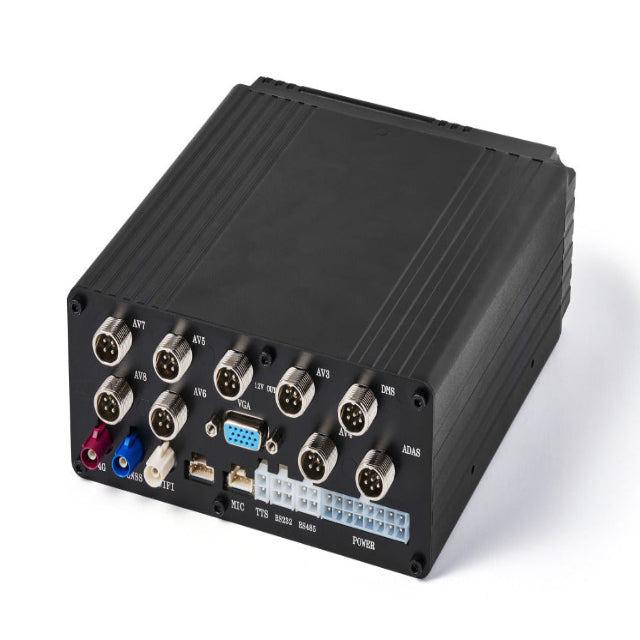

Interface Features

Interface Features

Interface Description

interface

Front USB interface

AI (ADAS and DMS) calibration, parameter setting

SIM card

Single card ( for GNSS data upload and video data transmission)

SD card

Single SD card, maximum support 256 GB

hard disk

2.5 -inch hard drive with a maximum capacity of 2 TB


DMS

Connect to DMS camera

A DAS

Connect A DAS camera

A V3-AV8

Connect A HD camera

1 2V OUT

V GA display power supply

VGA _

V GA signal output, optional external V GA display

M IC

Pickup for two-way talk and audio monitoring

TTS

Two-way conversation, voice broadcast

RS485 interface

Connect peripherals, such as: load sensor, gimbal

RS232 interface

Connect peripherals, such as: oil volume collector, temperature collector

others

Operating Voltage

DC 9-36V

Working current

600mA@12V, 300mA@24V

Standby power consumption

60mAmA@12V, 3 3mA@24V

spare battery

It can work for 1 5S after the device is powered off

Host size

L1 70 mm*W1 50 mm*H 65 mm

Host weight

About 1 260g

Operating temperature

-25°C — +80°C


Storage temperature

-40°C — +85°C
